ACCURATE LWIR RADIOMETRIC CAMERA
EMBEDDED RADIOMETRY AND ANALYSIS SOFTWARE
STANDARD INTERFACES FOR SEAMLESS INTEGRATION
MADE IN FRANCE

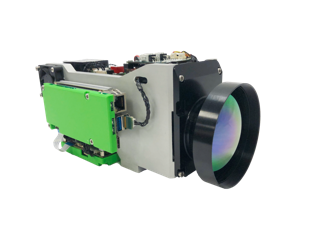

NoxCore LW series is a perfect combinaison of technologies from both surveillance and radiometry worlds. Based on latest generation of NoxEngine Technology, NoxCore LW models provide unmatched performance together with seamless integration effort.
NoxCore LW series is dedicated to large linear infrastructures inspections applications such as power lines, pipe lines, bridges, railways,…
Equipped with the latest generation of thermal detector, cooled by stirling engine, NoxCore LW cores offer excellent performance in a reduced footprint and energy consumption.
We only present general information in our product pages. Enumerating all the possibilities would make reading tedious. In addition, your project is definitely unique. It is important that we discuss it together, don’t hesitate to contact us.
NoxCore LW is part of NoxCore Family.
Check other type of configurations available.
SPECIFICATIONS
VIDEO AND CONTROL INTERFACES
- Video Output Format :
Color HDMI 720p with color overlay
Optional SDI or Analog - Video Streaming :
h.264 : RTSP or UDP
RAW : GigEVision - Control :
RS232 or Ethernet IP
DETECTOR
- Cooled, snapshot FPA
- Spectral Range : LWIR – 7.7μm to 9μm
- Matrix size : 640 x 512 pixels
- Pitch 15μm
- Cooling by Rotary Stirling
- Cooldown Time @20°C <8min
PHYSICAL AND ENVIRONMENT SPECIFICATIONS
- <20W in steady operation
- Operating Temperature Range : -20°C to +50°C
- Storage Temperature Range : -40°C to +70°C
- Vibration : Operational 2g, IEC 68-2-29
- Shock : Operational 25g, IEC 68-2-26
NOXCORE LW INTEGRATION EXAMPLE
