ULTRA COMPACT CAMERA CORE
CRYSTAL CLEAR IMAGE WITH ADVANCED VIDEO PROCESSING
STANDARD INTERFACES FOR SEAMLESS INTEGRATION
MADE IN FRANCE

MicroNoxCore is the smallest and lightest part of the NoxCore Vision family.

NoxCore Vision are thermal vision modules based on the NoxEngine Technology. They include all the features required for surveillance applications (Site monitoring, Traffic surveillance, Pollutant search, etc.).

Equipped with the latest generation of thermal detector, cooled by stirling engine, MicroNoxCore  cores offer extreme performance in a reduced footprint and energy consumption.

The Noxant team is dedicated to provide you with in-depth assistance for the optimal integration of NoxCore Vision in your system, and trains your team to get the maximum out of the NoxEngine technology.

We only present general information in our product pages. Enumerating all the possibilities would make reading tedious. In addition, your project is definitely unique. It is important that we discuss it together, don’t hesitate to contact us.

MicroNoxCore is part of NoxCore Family.
Check other type of configurations available.
  • MWIR remote sensing
  • Harbor surveillance with infrared camera

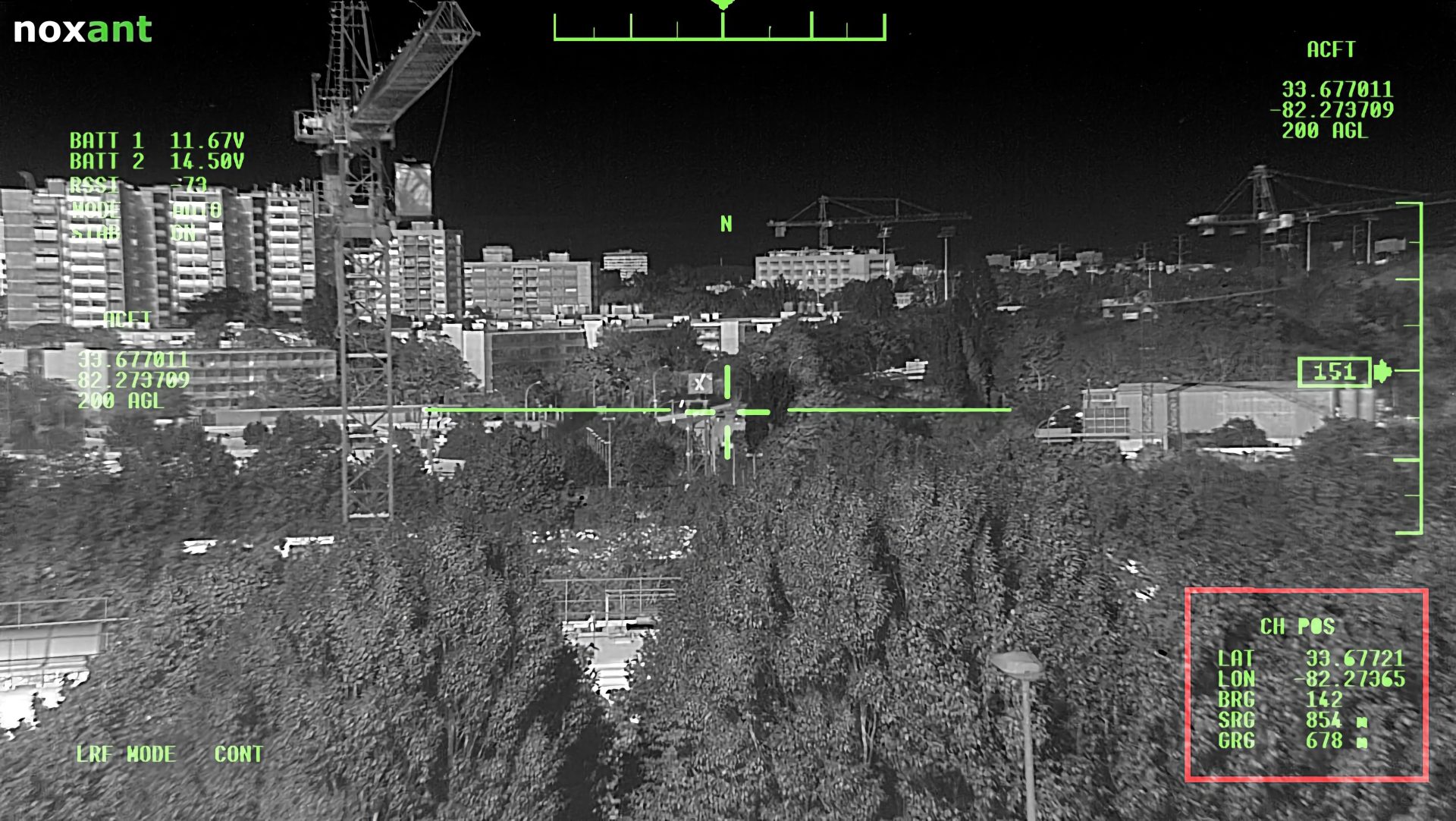

  • UAV integration example

SPECIFICATIONS

VIDEO AND CONTROL INTERFACES
  • Video Output Format :
    Color HDMI 720p with color overlay
    Optional SDI
  • Video Streaming :
    h.264 : RTSP or UDP
    RAW : GigEVision
  • Control :
    RS232 or Ethernet IP
DETECTOR
  • Cooled, snapshot FPA
  • Spectral Range : MWIR – 3μm to 5μm
  • Matrix size : 640 x 512 pixels
  • Pitch 15μm
  • Optical aperture f/5.5
  • Cooling by Rotary Stirling
  • Cooldown Time @20°C <6min
PHYSICAL AND ENVIRONMENT SPECIFICATIONS
  • <20W in steady operation
  • Operating Temperature Range : -30°C to +60°C
  • Storage Temperature Range : -40°C to +70°C
  • Vibration : Operational 2g, IEC 68-2-29
  • Shock : Operational 25g, IEC 68-2-26

MicroNoxCore  INTEGRATION EXAMPLE
